Introduction
As more homes and commercial buildings adopt automation, motorized shading and access systems are becoming increasingly common. From roller shutters and blinds to awnings and smart windows, one component plays a key role behind the scenes: the tubular motor.
So, what is a tubular motor, and why is it widely used in modern automation systems? In simple terms, a tubular motor is a compact electric motor designed to fit inside a tube or barrel, where it powers the movement of rolling or lifting systems. Because of its space-saving design, quiet operation, and reliable performance, it has become a popular solution in residential, commercial, and industrial applications.
In this article, we’ll explain what a tubular motor is, how it works, where it is used, and why it is especially effective as a tubular motor for roller shutters and a tubular motor for windows.
What Is a Tubular Motor?
A tubular motor is an electric drive unit built in a cylindrical shape so that it can be installed directly inside a roller tube. Once installed, the motor rotates the tube to raise, lower, open, or close a system such as roller shutters, blinds, projection screens, awnings, or windows.
Unlike traditional external motors, tubular motors are hidden inside the tube, making the overall setup more compact and visually clean. This design also protects the motor from dust, impact, and weather exposure, depending on the application.
Tubular motors are commonly used in systems that require controlled rolling motion. They are especially popular in:
- Roller shutters
- Roller blinds
- Awnings
- Garage doors
- Skylights
- Automated window systems
Because of their versatility, many builders and manufacturers choose a tubular motor for roller shutters when security, convenience, and durability are essential. At the same time, a tubular motor for windows is increasingly used in smart buildings where ventilation and natural light need to be controlled automatically.
How Does a Tubular Motor Work?
To understand how a tubular motor works, it helps to look at its core operating principle.
The motor is installed inside a tube. When electricity powers the motor, it generates rotational movement. This rotation turns the tube, which then rolls or unrolls the attached shutter, blind, or window mechanism. As the tube rotates in one direction, the system opens; when it rotates in the opposite direction, the system closes.

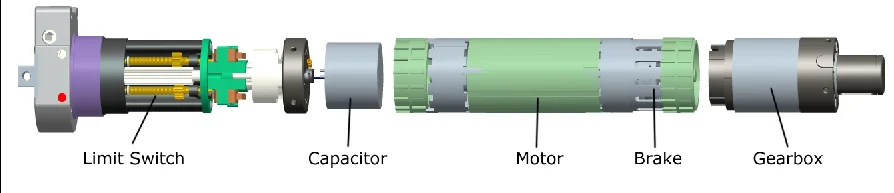

Most tubular motors include the following main components:
1. Electric Motor
This is the core driving element that converts electrical energy into mechanical rotation.
2. Gear Reduction System
The gear system reduces speed and increases torque, allowing the motor to move heavier loads more efficiently and safely.
3. Limit Switches
Limit switches control how far the motor can travel in each direction. They stop the motion automatically when the shutter or window reaches its fully open or fully closed position.
4. Drive and Crown Adapters
These components connect the motor body to the roller tube, ensuring that the rotational force is transferred correctly.
5. Control System
The motor can be controlled by a wall switch, remote control, timer, or smart home automation platform.
This simple but effective mechanism is what makes tubular motors a trusted solution for modern motion control systems.
Key Advantages of a Tubular Motor
Tubular motors offer several benefits that make them ideal for automated systems.
Space-Saving Design
Because the motor fits inside the tube, it does not require additional installation space. This is especially useful in compact window and shutter systems.
Clean Appearance
Since the motor is hidden, the final installation looks neat and professional. This is important for both residential and commercial interiors.
Low Noise Operation
Most tubular motors operate quietly, which improves comfort in homes, offices, hotels, and healthcare environments.
Reliable Performance
Tubular motors are designed for repeated daily use. With proper installation and maintenance, they can provide long-term and stable performance.
Easy Automation
They can be integrated with sensors, remote controls, and smart home systems, making it easier to automate sunlight control, privacy, and security.
Enhanced Safety
Automatic limit settings and overload protection help prevent damage to the system and improve user safety.
Common Applications of Tubular Motors
Tubular motors are used in many industries and building systems. Let’s look at the most common applications.
Tubular Motor for Roller Shutters
A tubular motor for roller shutters is one of the most common uses of this technology. Roller shutters are installed for security, insulation, privacy, and storm protection. A tubular motor allows the shutters to open and close smoothly without manual effort.
This application is widely used in:
- Residential windows and doors
- Retail storefronts
- Warehouses
- Industrial facilities
- Garages
Using a tubular motor for roller shutters offers clear advantages:
- Convenient remote or automatic control
- Better daily usability
- Improved security
- Consistent opening and closing
- Reduced wear compared to manual operation
In smart buildings, roller shutters can even be programmed to open and close based on time, light levels, or temperature.
Tubular Motor for Windows
A tubular motor for windows is another increasingly important application, especially in modern architecture and building automation. Motorized windows can improve ventilation, comfort, and energy efficiency by allowing windows to open and close automatically.
This is useful in:
- Skylights
- High windows
- Roof windows
- Hard-to-reach openings
- Smart homes and office buildings
A tubular motor for windows can be connected to environmental sensors so that the system reacts automatically to heat, wind, or rain. For example, windows may close automatically when rain is detected or open to improve airflow when indoor temperatures rise.
This makes tubular motors highly effective in energy-conscious building design.
Types of Tubular Motors
Not all tubular motors are the same. Different applications require different motor types, torque levels, and control options.
Manual Switch-Controlled Tubular Motors
These motors are operated with a wall switch. They are cost-effective and suitable for basic installations.
Remote-Controlled Tubular Motors
These allow wireless control through a handheld remote, making them more convenient for everyday use.
Smart Tubular Motors
Smart motors can connect to home automation systems, mobile apps, and voice assistants. They are ideal for modern smart buildings.
Mechanical Limit Tubular Motors
These use manual adjustment to set upper and lower stopping points.
Electronic Limit Tubular Motors
These provide more precise control and easier programming, often used in advanced systems.
Choosing the right type depends on the size of the system, the required torque, frequency of use, and the desired control method.
How to Choose the Right Tubular Motor
If you are selecting a tubular motor for a project, there are several factors to consider.
Load Capacity
The motor must have enough torque to handle the weight of the shutter, blind, or window system.
Tube Size
The motor diameter must match the tube size for proper installation.
Application Type
A motor for a lightweight blind may not be suitable as a tubular motor for roller shutters, where stronger torque is often needed. Likewise, a tubular motor for windows may require more specialized control features.
Power Supply
Check whether the system uses AC or DC power and whether it is compatible with the installation environment.
Control Method
Decide whether you need switch control, remote control, or smart automation.
Duty Cycle and Frequency of Use
For commercial or industrial systems, choose a motor designed for heavier and more frequent operation.
Environmental Conditions
If the motor will be exposed to heat, moisture, or dust, make sure it has the proper protection rating.
Installation and Maintenance Tips
Proper installation is essential for the performance and lifespan of a tubular motor. The motor should be mounted securely, aligned correctly inside the tube, and connected to a suitable control system.
Here are a few best practices:
- Use the correct motor size and torque rating
- Set limit positions accurately
- Ensure proper wiring and power supply
- Test opening and closing cycles after installation
- Follow manufacturer guidelines carefully
Maintenance is generally minimal, but routine inspection can help prevent unexpected issues. Check for unusual noise, vibration, or movement problems, and make sure the connected system is clean and properly aligned.
Why Tubular Motors Are Important in Modern Automation
As buildings become smarter and more energy-efficient, tubular motors play an increasingly important role. They help automate everyday functions while improving user comfort, security, and operational efficiency.
Whether used as a tubular motor for roller shutters to enhance protection or as a tubular motor for windows to improve ventilation, these motors offer a practical and scalable solution for many types of projects.
Their hidden design, ease of use, and compatibility with automation systems make them a preferred choice across many industries.
Conclusion
So, what is a tubular motor? It is a compact, cylindrical electric motor designed to fit inside a roller tube and drive systems such as shutters, blinds, awnings, and windows. By converting electrical power into controlled rotational motion, tubular motors make automation easier, cleaner, and more efficient.
From residential roller shutters to advanced window automation, tubular motors offer the ideal combination of performance, convenience, and durability. If you are looking for a reliable motorized solution, choosing the right tubular motor can significantly improve both functionality and user experience.
FAQ
What is a tubular motor used for?
A tubular motor is used to automate rolling or lifting systems such as roller shutters, blinds, awnings, screens, and windows.
How does a tubular motor work?
It works by rotating a tube from the inside, allowing the connected system to open or close smoothly and automatically.
Why use a tubular motor for roller shutters?
A tubular motor for roller shutters improves convenience, security, and consistency while reducing manual effort.
Can a tubular motor be used for windows?
Yes, a tubular motor for windows is commonly used in automated ventilation systems, skylights, and smart building applications.
Are tubular motors compatible with smart home systems?
Many modern tubular motors can be integrated with smart home platforms, timers, sensors, and remote controls.
